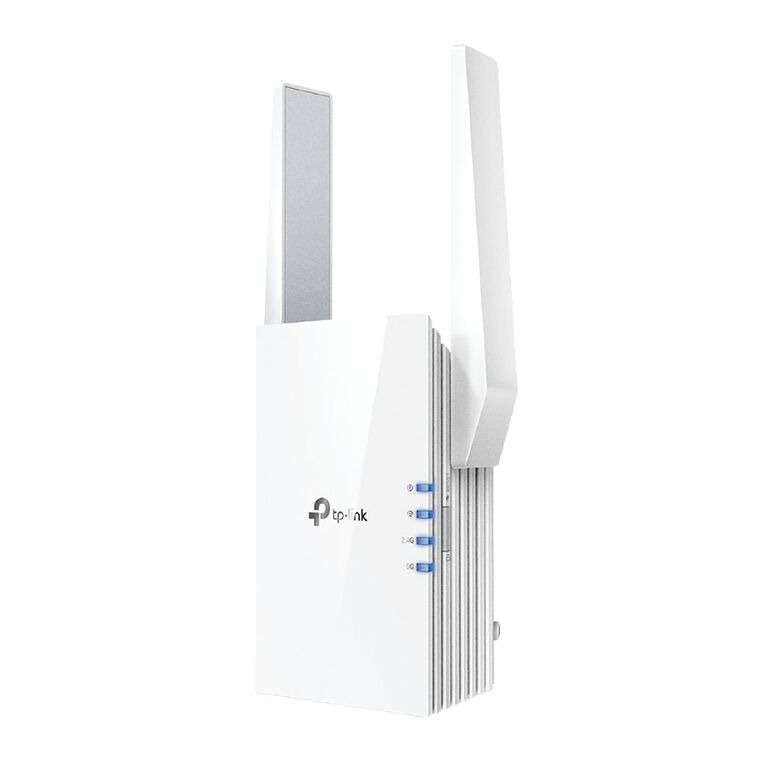

TP-Link AX1500 Wi-Fi 6 Range Extender

  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 0ms
  • reviews, product
  • bvseo-msg: EXECUTION_TIMEOUT is set to 0 ms; JavaScript-only Display.;
TP-Link AX1500 Wi-Fi 6 Range Extender, , hi-res
verified_user
Protect your product
View details
2 Flybuys

Product details

Model: TPL-RE505X Product Id: N206166
The 505X wirelessly connects to your router, boosting your Wi-Fi 6 signal throughout your home so you can binge watch your favorite show anywhere.
  • RE505X comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.
  • Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage.
  • Gigabit Ethernet Port - Provide faster-wired connections to smart TVs, computers and gaming consoles
  • Intelligent Signal Light - Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement
  • AP Mode - create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
  • TP-LINK Tether App - Easily access and manage your network using any iOS or Android mobile device
  • Ultimate Compatibility - Extend the range of any Wi-Fi router or wireless access point

Features & Benefits

  • Ports: 1 Gigabit Ethernet Port
  • Button: WPS Button, Reset Button
  • Power Consumption: 10W
  • Dimensions ( W x D x H ): 2.9×1.8×4.9 in. (74.0×46×124.8 mm)
  • Antenna: 2 External Antennas
  • Wireless Standards: IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz
  • Frequency: 2.4GHz and 5GHz
  • Signal Rate: 300 Mbps at 2.4GHz, 1200 Mbps at 5GHz
  • Reception Sensitivity 5GHz:
  • 11a 6Mbps: -93dBm,
  • 11a 54Mbps: -75dBm
  • 11ac HT20 MCS0: -92dBm,
  • 11ac HT20 MCS8: -70dBm
  • 11ac HT40 MCS0: -90dBm,
  • 11ac HT40 MCS9: -66dBm
  • 11ac HT80 MCS0: -87dBm,
  • 11ac HT80 MCS9: -62dBm
  • Reception Sensitivity 2.4GHz:
  • 11g 54Mbps: -77dBm,
  • 11n HT20 MCS7: -75dBm
  • 11n HT40 MCS7: -72dBm
  • Transmit Power: CE: 2.4GHz <20dBm, 5GHz < 30dBm
  • Wireless Functions: Enable/Disable Wireless Radio, Wireless Statistics
  • Wireless Security: 64/128-bit WEP, WPA/WPA-PSK2 encryptions
  • System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
  • Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
