Product details

Model: TPL-RE505X Product Id: 206166

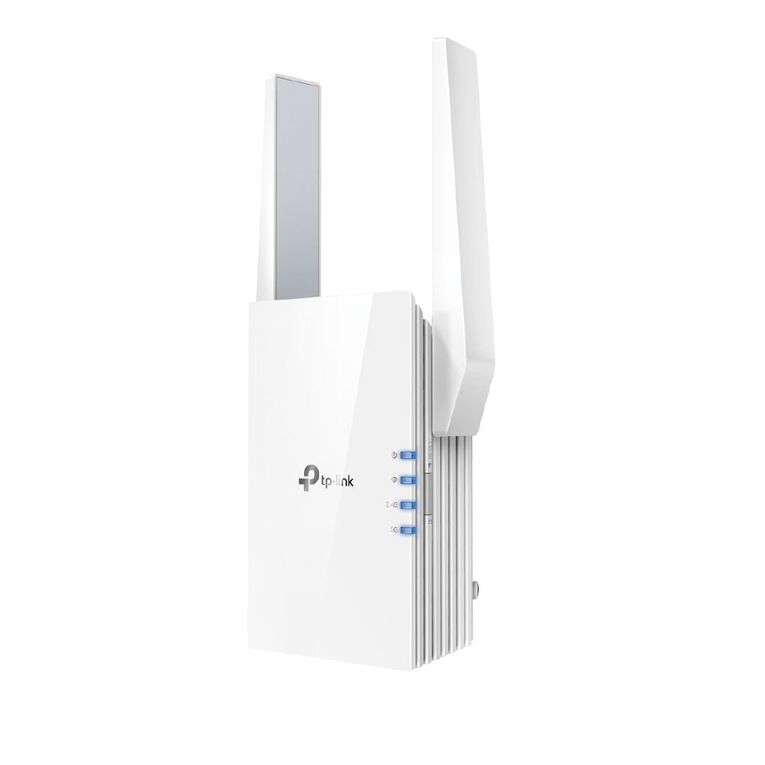

The 505X wirelessly connects to your router, boosting your Wi-Fi 6 signal throughout your home so you can binge watch your favorite show anywhere. RE505X is more than just a wireless range extender. Simply plug an Ethernet cable into its port to easily turn that wired connection into a high-speed dual band wireless signal.

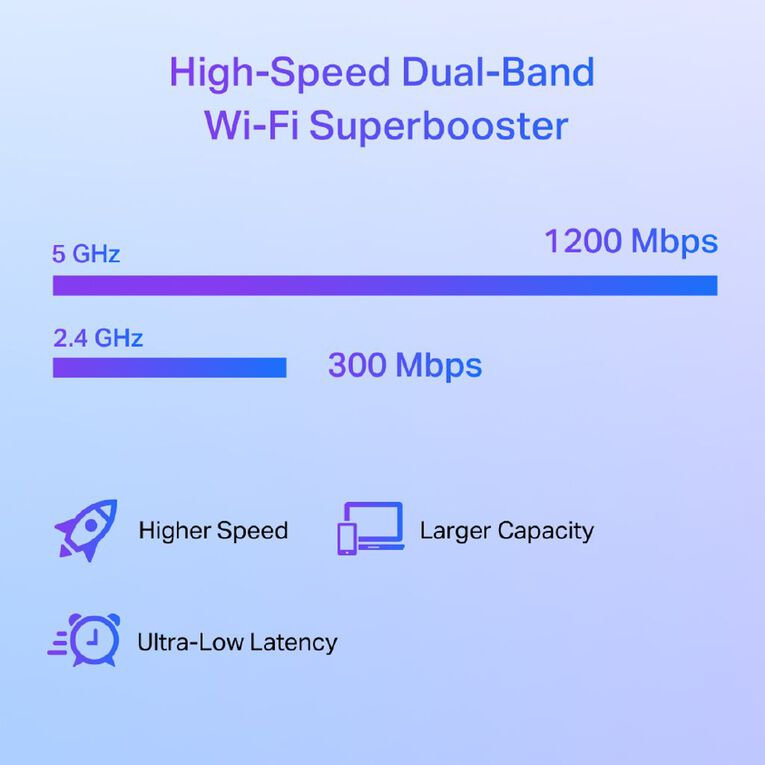

  • Up to 1.5 Gbps Dual Band Wi-Fi: Separates 5 GHz (1200Mbps) and 2.4 GHz (300 Mbps) Wi-Fi bands for faster speeds and greater capacity with the Wi-Fi 6 technology
  • Smart Roaming: Walk from room to room and stay connected with the fastest possible speeds

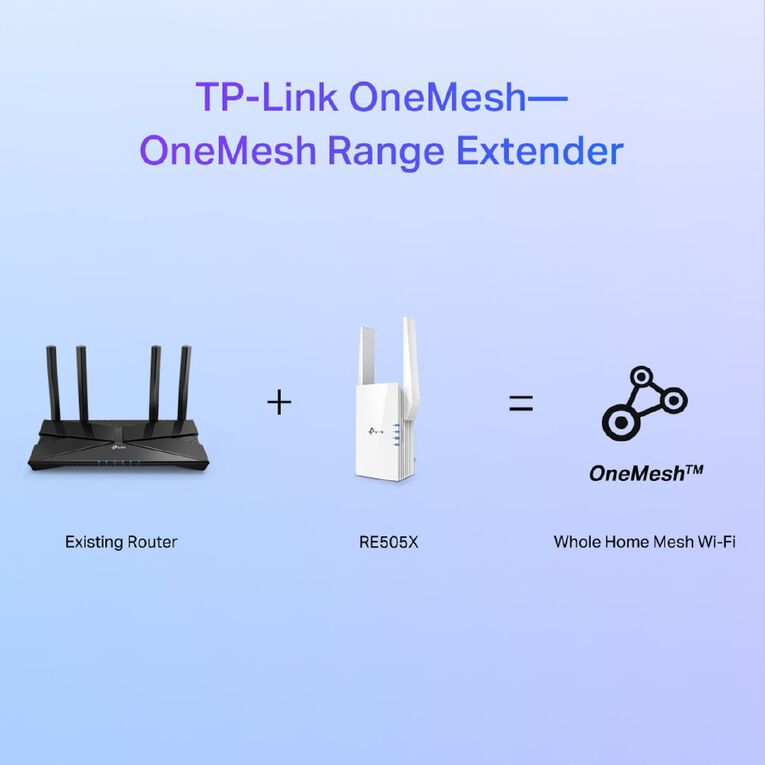

  • EasyMesh-Compatible: Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage
  • Gigabit Ethernet Port: Provides faster wired connections to smart TVs, computers and gaming consoles

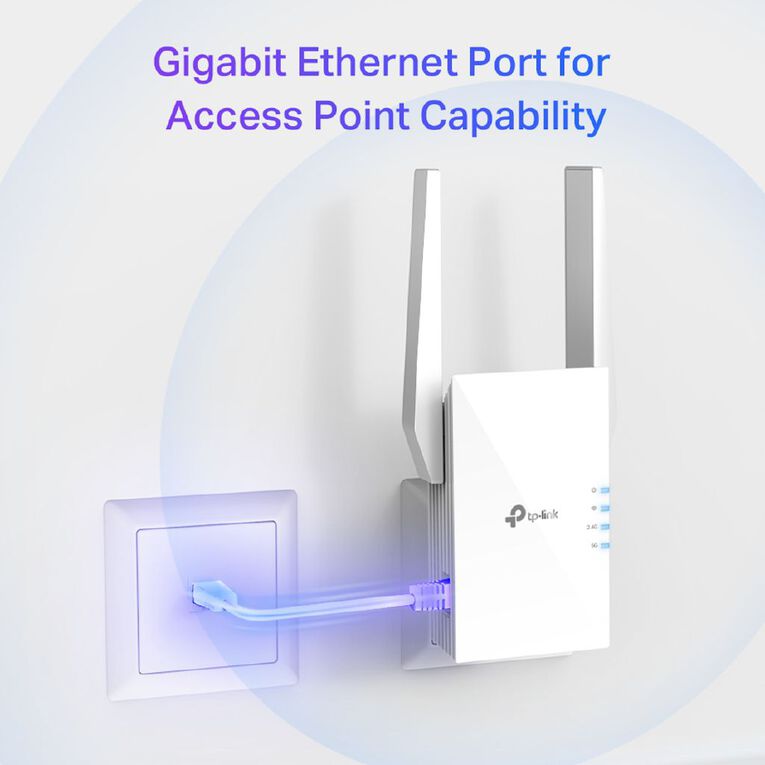

  • AP Mode: Create a new Wi-Fi access point through the Gigabit Ethernet port to enhance your wired network with Wi-Fi capability

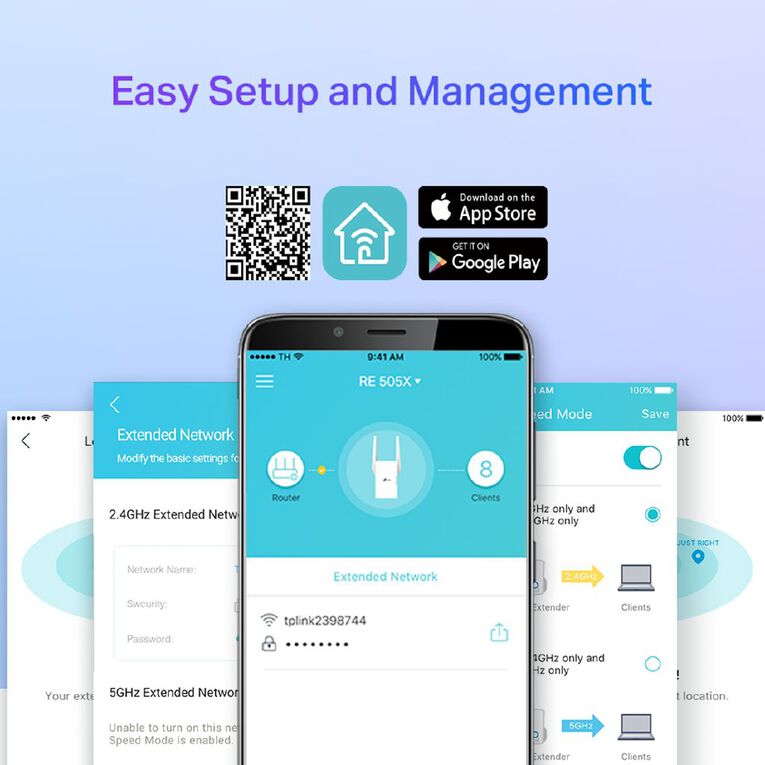

  • TP-LINK Tether App - Easily access and manage your network using any iOS or Android mobile device
  • Easy Setup: Plug in and then easily set up via a press of the WPS button or via the Tether App

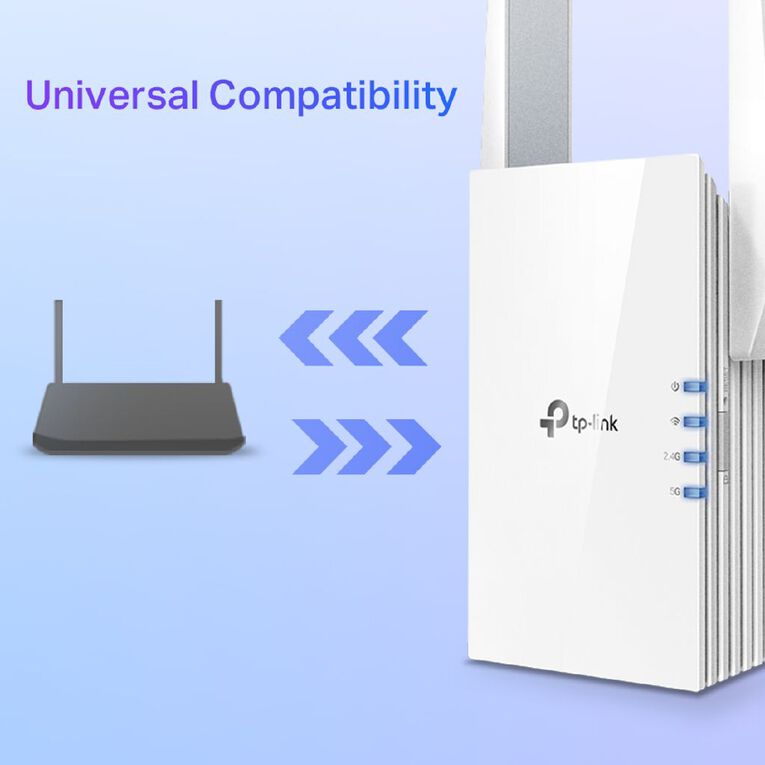

  • Ultimate Compatibility: Extends the range of any Wi-Fi router or wireless access point
  • 36 months manufacturer warranty

Features & Benefits

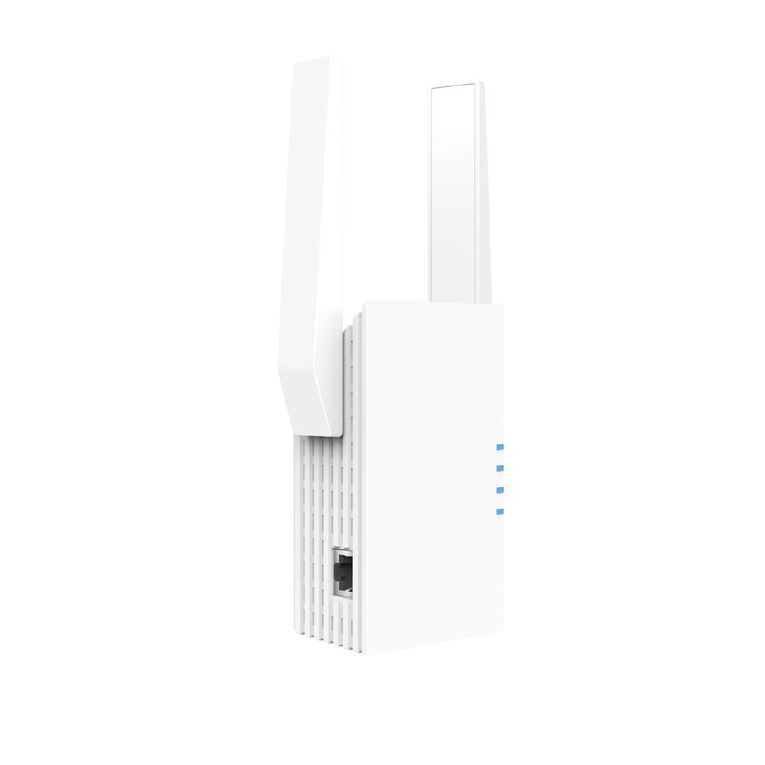

  • Ports: 1 Gigabit Ethernet Port
  • Button: WPS Button, Reset Button
  • Power Consumption: 10W
  • Dimensions ( W x D x H ): 2.9×1.8×4.9 in. (74.0×46×124.8 mm)
  • Antenna: 2 External Antennas
  • Wireless Standards: IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz
  • Frequency: 2.4GHz and 5GHz
  • Signal Rate: 300 Mbps at 2.4GHz, 1200 Mbps at 5GHz
  • Reception Sensitivity 5GHz:
  • 11a 6Mbps: -93dBm,
  • 11a 54Mbps: -75dBm
  • 11ac HT20 MCS0: -92dBm,
  • 11ac HT20 MCS8: -70dBm
  • 11ac HT40 MCS0: -90dBm,
  • 11ac HT40 MCS9: -66dBm
  • 11ac HT80 MCS0: -87dBm,
  • 11ac HT80 MCS9: -62dBm
  • Reception Sensitivity 2.4GHz:
  • 11g 54Mbps: -77dBm,
  • 11n HT20 MCS7: -75dBm
  • 11n HT40 MCS7: -72dBm
  • Transmit Power: CE: 2.4GHz <20dBm, 5GHz < 30dBm
  • Wireless Functions: Enable/Disable Wireless Radio, Wireless Statistics
  • Wireless Security: 64/128-bit WEP, WPA/WPA-PSK2 encryptions
  • System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
  • Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
